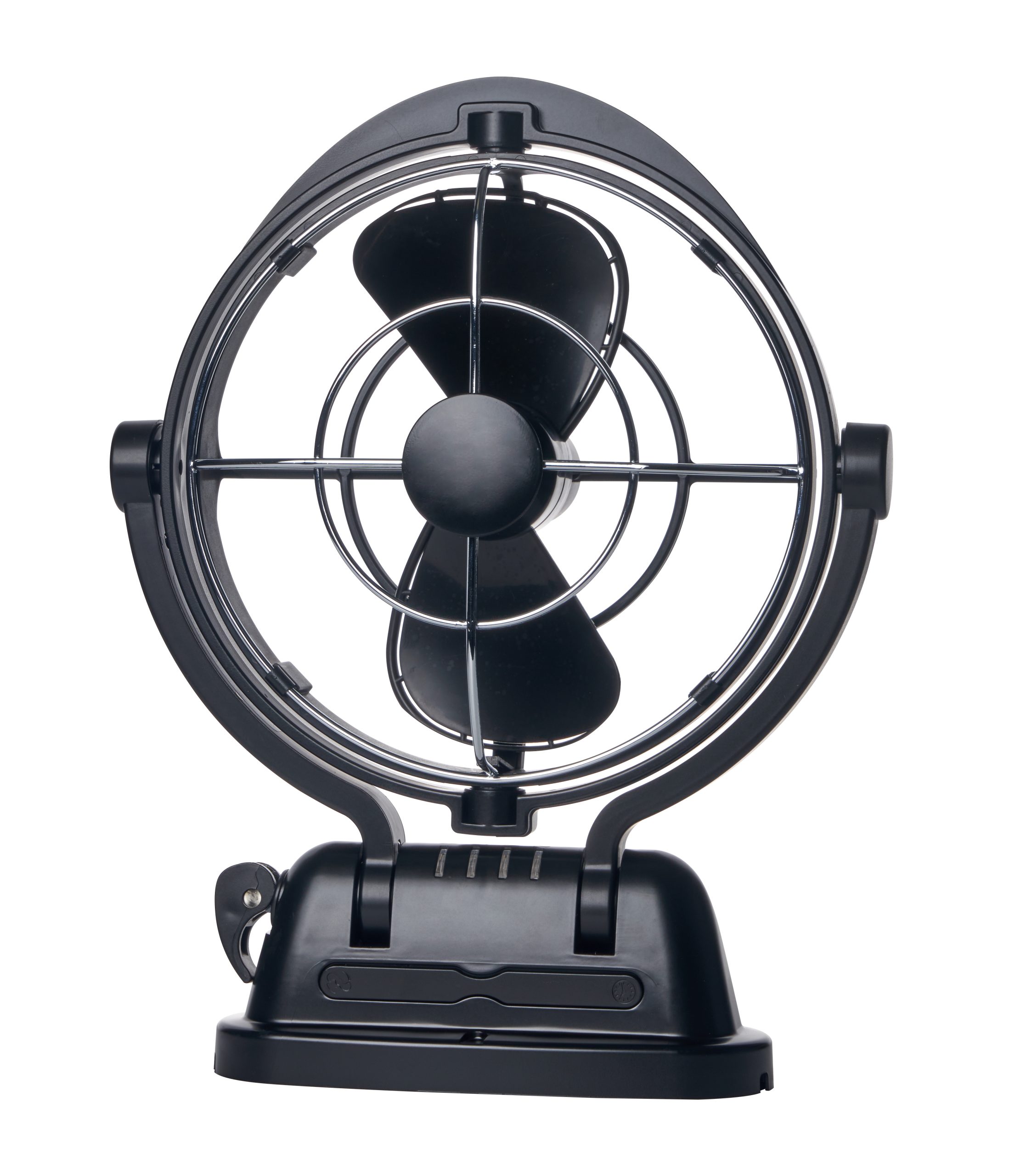

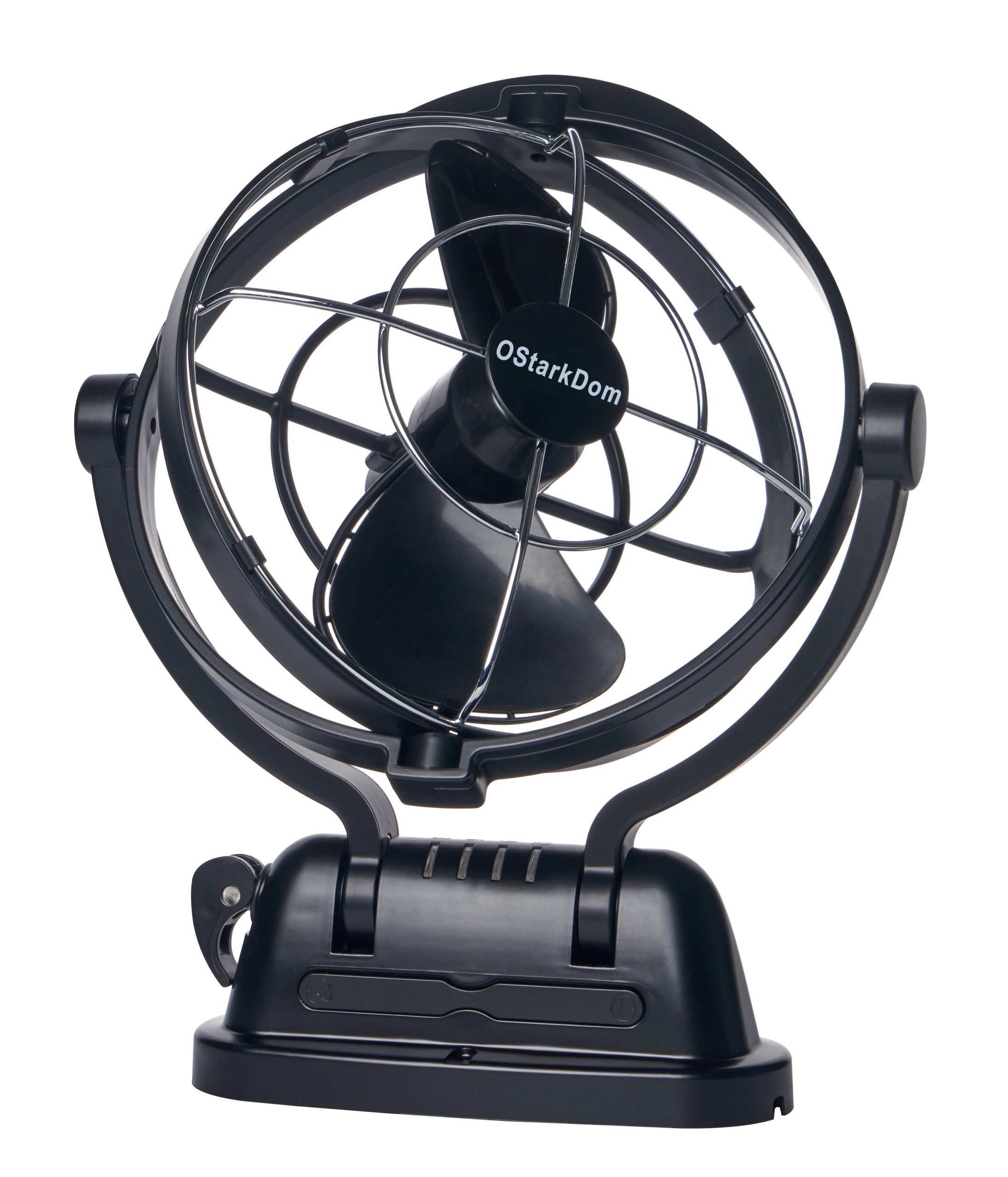

Electric Fan Series - REF & REF-USB
Technical Specifications
| Application | Compact DC 12/24V fans designed for caravans and motorhomes. |
| Key Features | 180-degree rotating base, 360-degree directional adjustment, two-blade safety design, and low-noise operation. |
| Control Panel | Two-way control with one-touch operation and 3-speed adjustment. |
| Timer Options | 3H, 6H, 9H, and 12H modes. |
| REF-USB Exclusive | Includes USB charging port (DC 5V / 2.4A) and handheld remote control. |
Performance Data
| Level | Current (12V) | Current (24V) | Speed (RPM) | Max Air (CFM) |
|---|---|---|---|---|
| Low (1) | 0.14A | 0.11A | 1100 ±100 | 370 |
| Medium (2) | 0.26A | 0.18A | 1400 ±100 | 536 |
| High (3) | 0.42A | 0.25A | 1700 ±100 | 725 |
Series Comparison
| Series Model | Power / Control Features | Available Colors |
|---|---|---|
| REF-USB Series | USB charging port & Handheld remote | White / Black |
| REF Series | Standard control (No USB/Remote) | White / Black |
