Rooflights RSL400400-3.0
OStarkDom Rooflights RSL400400-3.0
$750.00 Excl. tax
In stock
• Non-powered roof vent for simple and reliable ventilation.

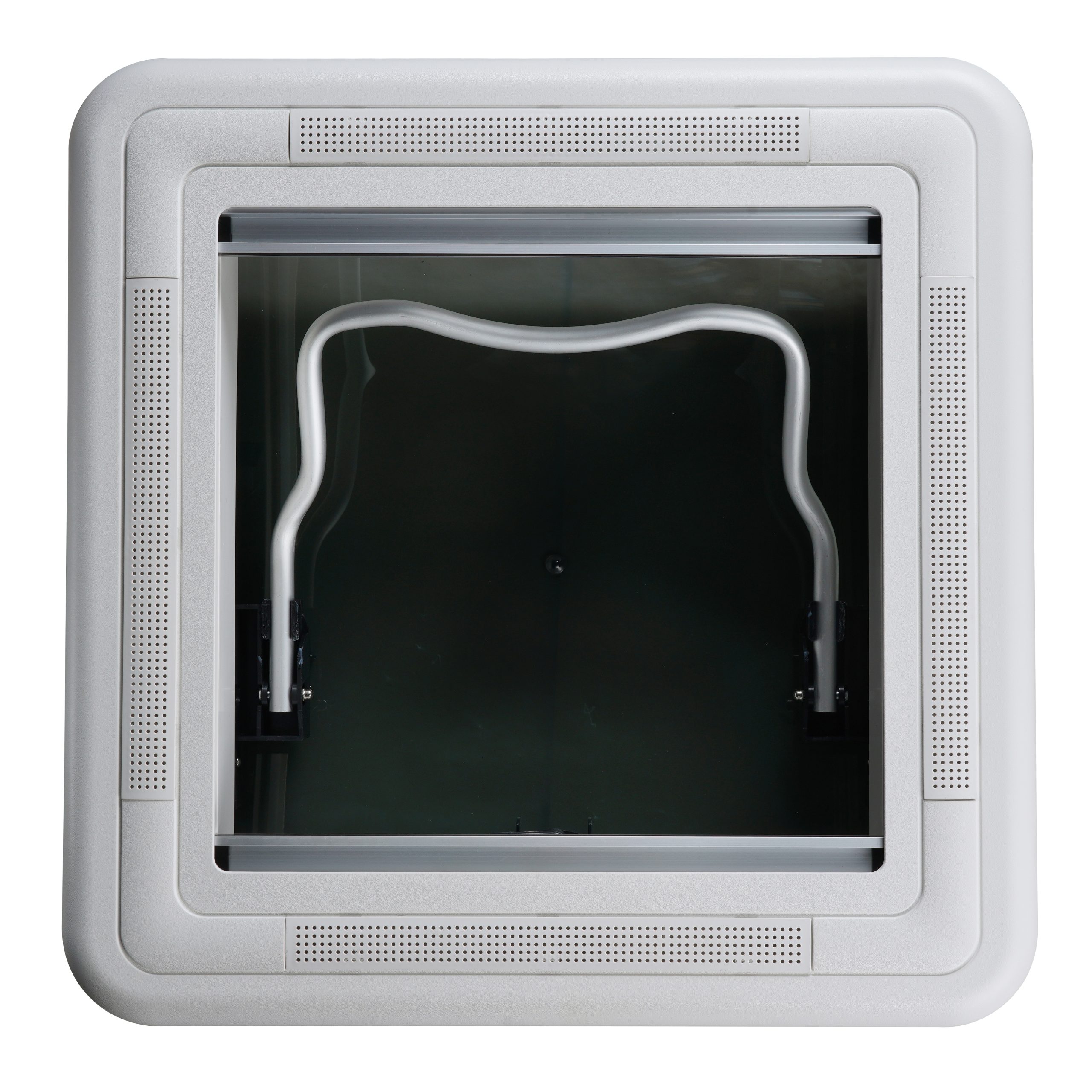

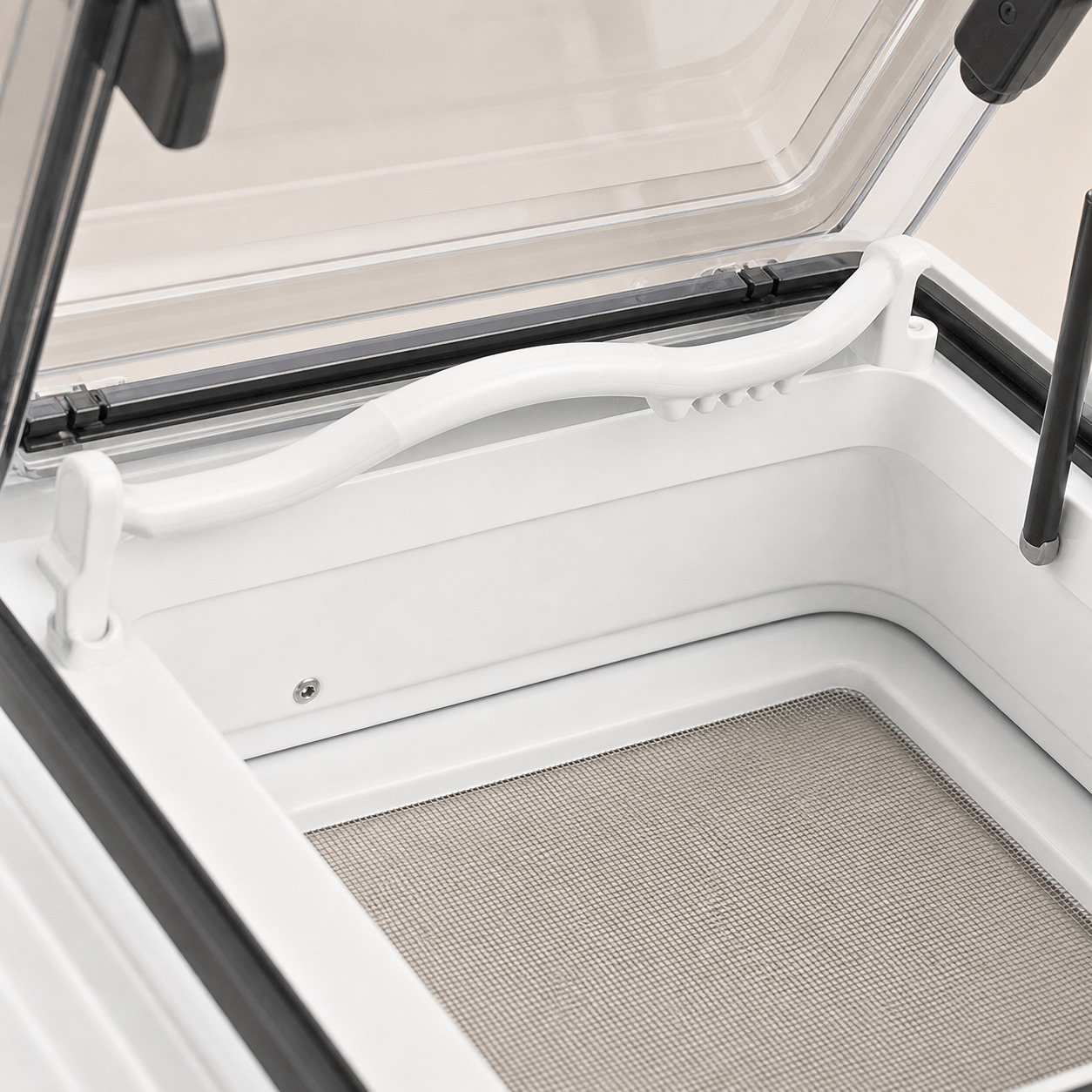

• Easy manual opening and closing with a smooth push-pull handle.
• Double-layer acrylic dome with excellent insulation and UV resistance.

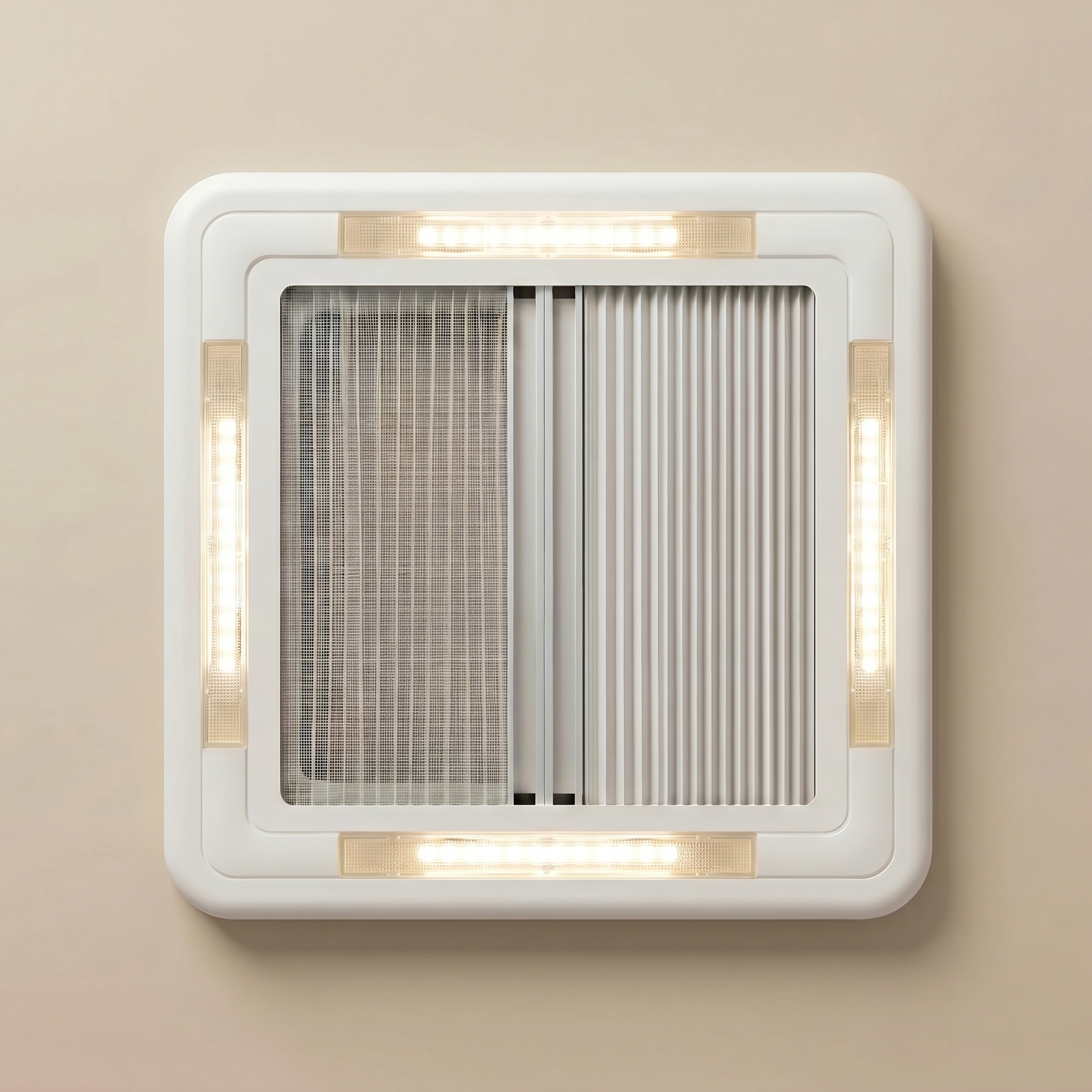

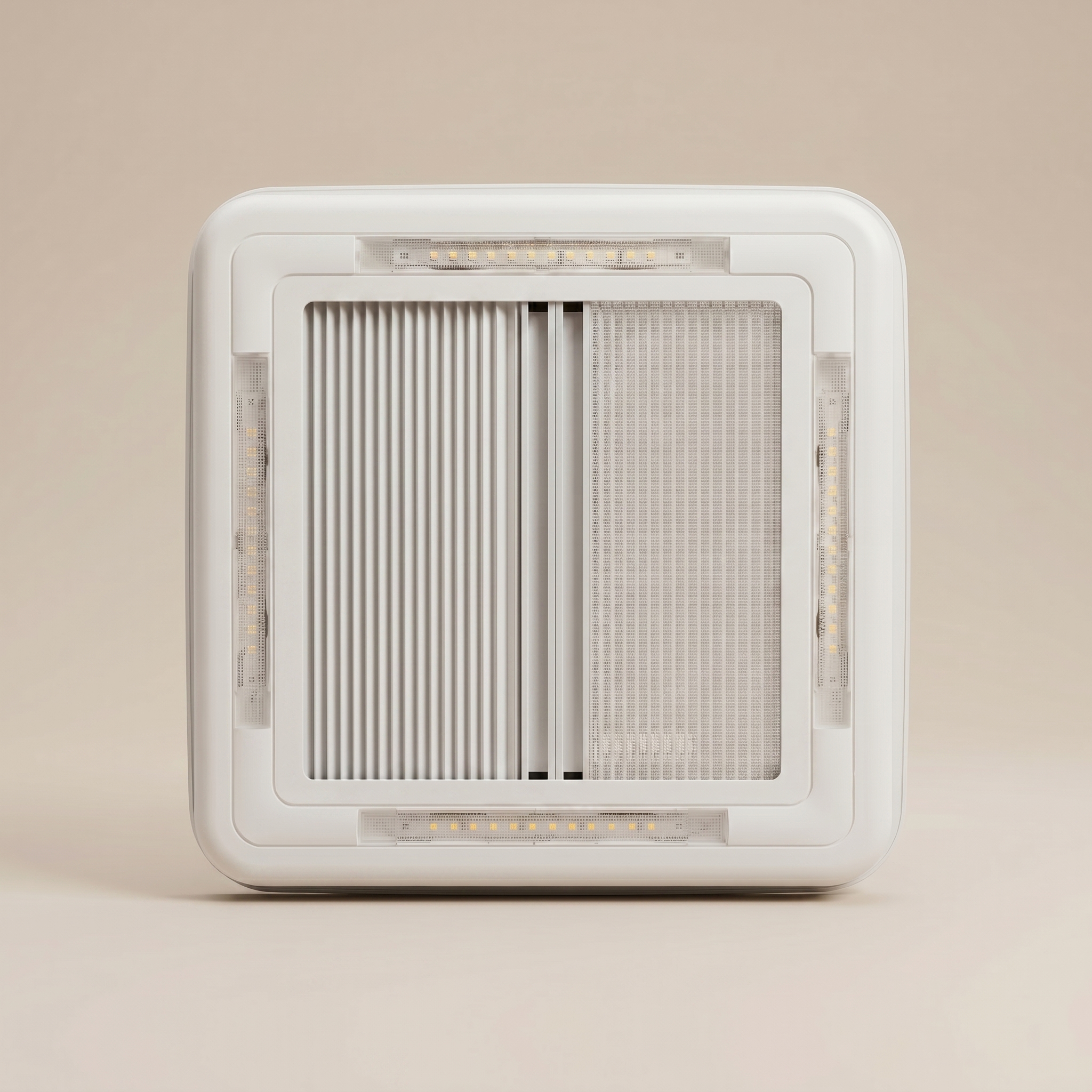

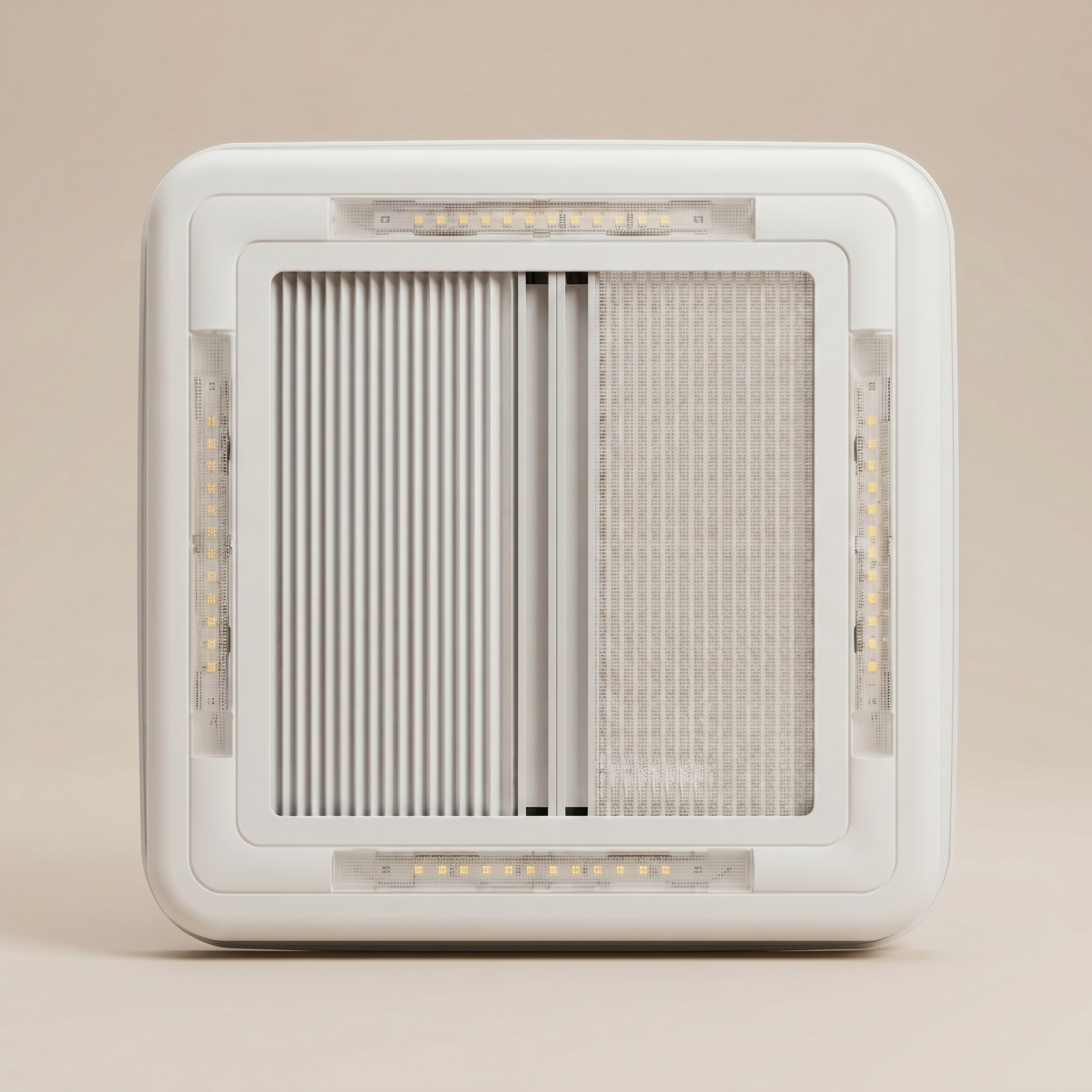

• Built-in LED light for convenient night-time use.

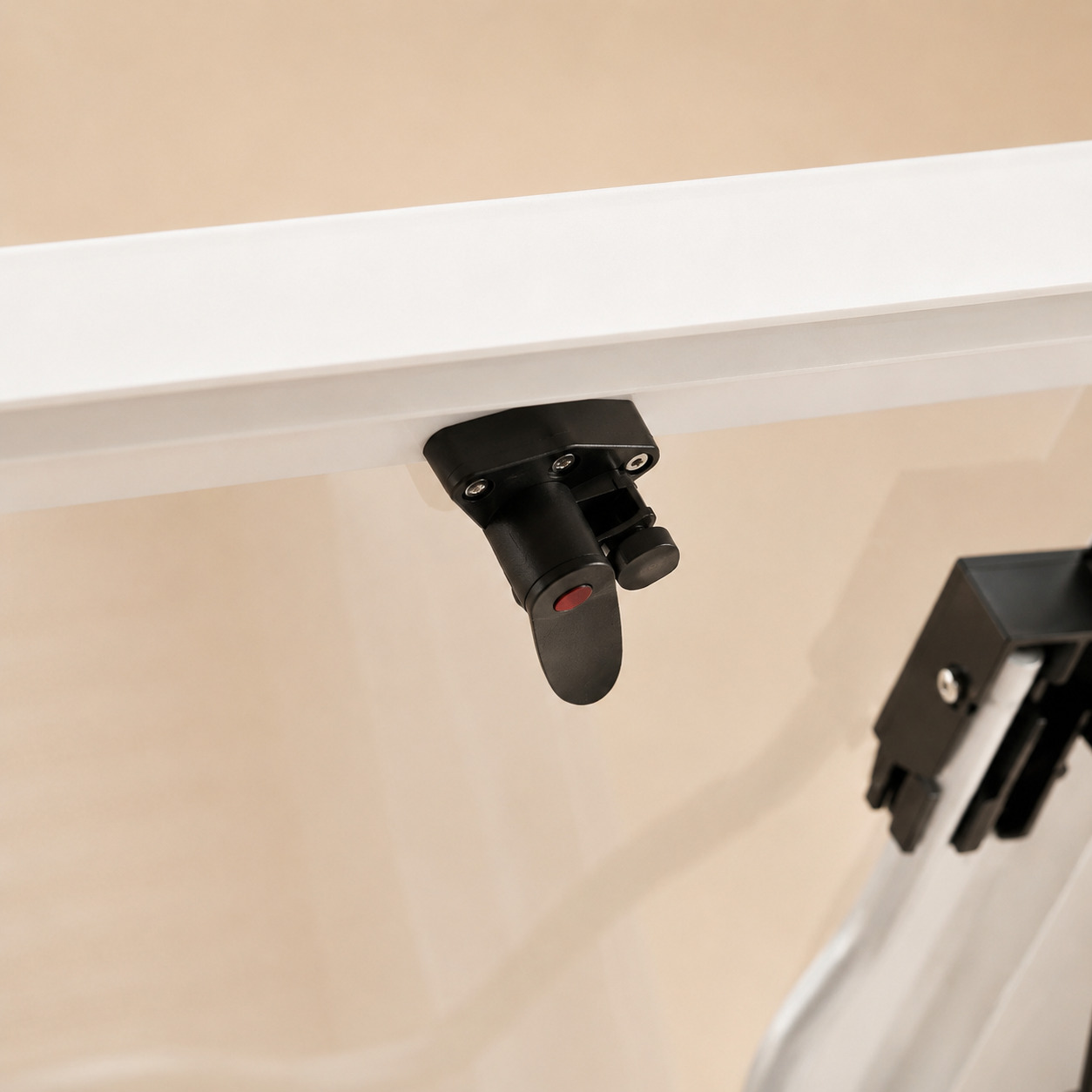

• Locking handle with manual operation, three opening positions, and a maximum opening angle of 60°.

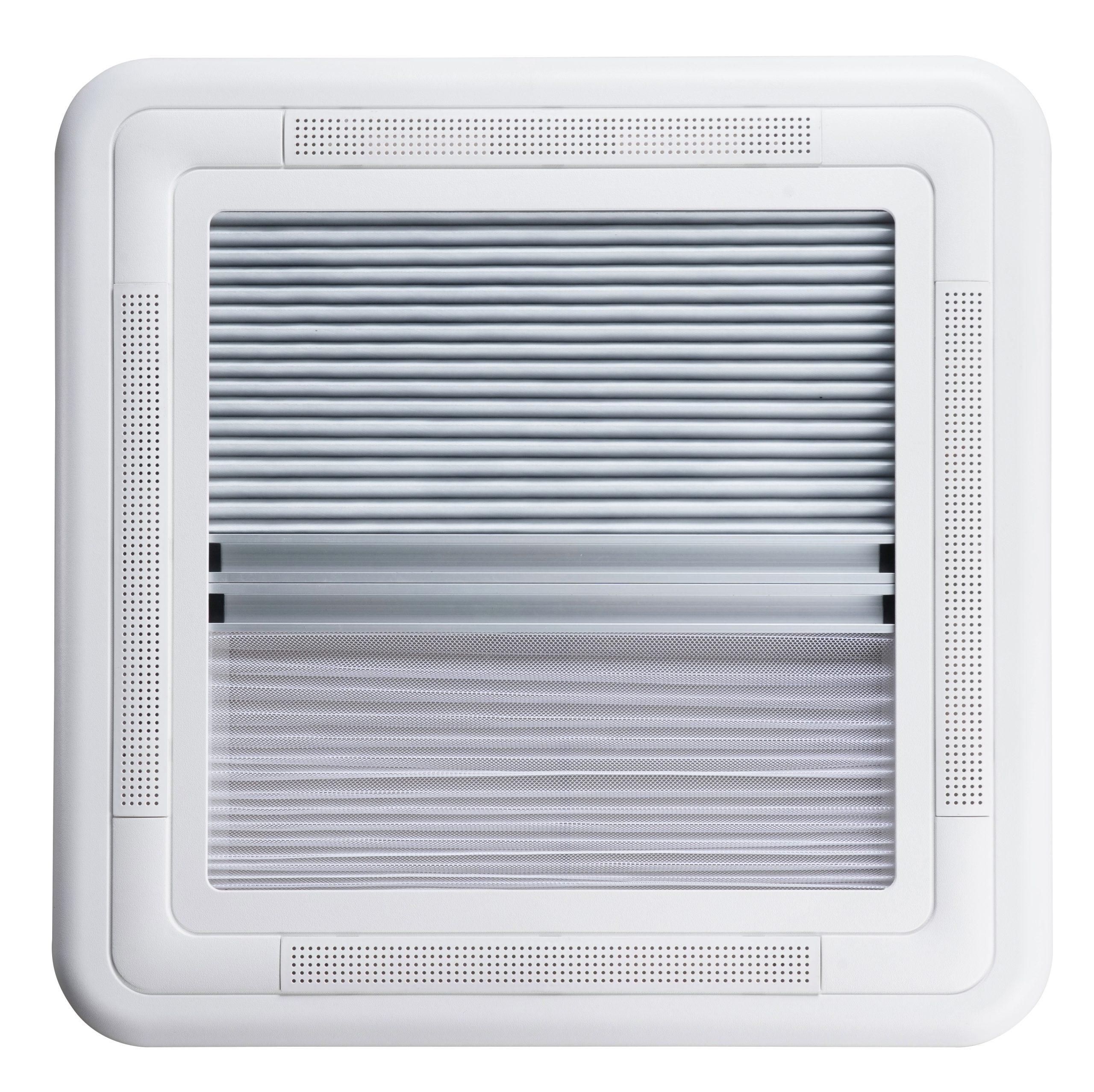

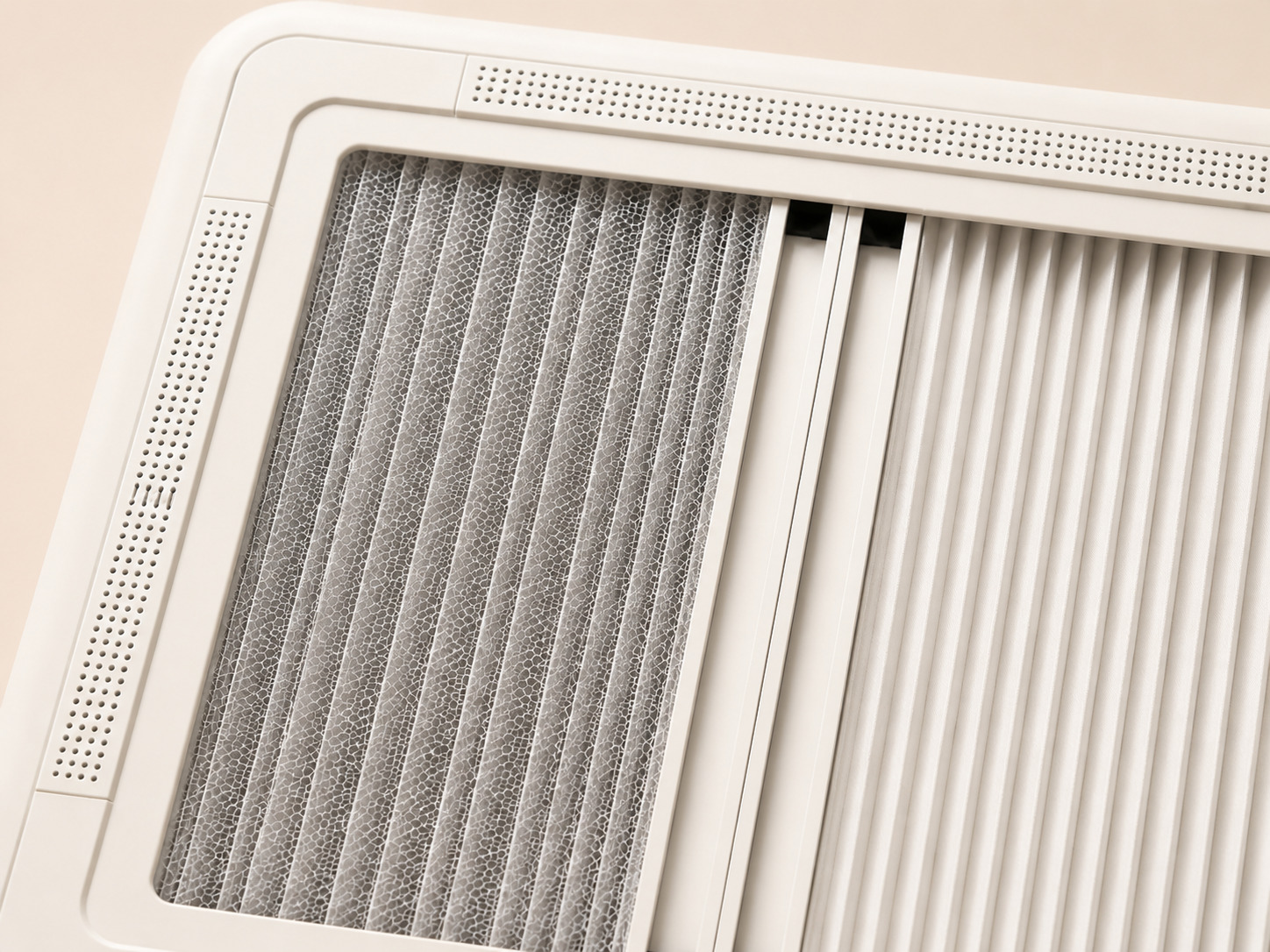

• Interior frame with integrated insect screen and blackout blind.
• Up to 150 cm² of permanent ventilation.
Available Sizes
| Product Code | Overall Size (mm) | Cut-out Size (mm) | R Angle | Weight (kg) | Above the Roof (mm) | Power (W) | Wall Thickness (mm) | Description |
|---|---|---|---|---|---|---|---|---|
| RSL700500 | 834*643 | 702*502 | R60 | 8.7 | 98 | 6.4 | 25–60 | LED |
| RSL450400 | 587*578 | 452*402 | R15 | 5.7 | 98 | 4.6 | 25–60 | LED |
| RSL700500V | 834*643 | 702*502 | R60 | 8.2 | 98 | 6.4 | 25–60 | LED |
| RSL450400V | 587*578 | 452*402 | R15 | 5.6 | 98 | 4.6 | 25–60 | LED |
| RSL400600 | 727*587 | 402*602 | R15 | 8.9 | 98 | 6.0 | 40–80 | LED |
| RSL400400 | 500*500 | 402*402 | R10 | 4.3 | 106 | / | 30–50 | Single acrylic dome |
| RSL400400V | 520*520 | 402*402 | R10 | 3.0 | 80 | 3.0 | 30–60 | Single acrylic dome |
| RSL400400V-A01 | 525*525 | 402*402 | R10 | 5.0 | 90.5 | 3.8 | 30–60 | LED |
| RSL400400V-3.0 | 527*527 | 402*402 | R10 | 4.95 | 90 | 3.8 | 25–60 | LED |
| RSL500500V | 560*560 | 502*502 | R10 | 5.75 | 96.5 | 4.0 | 25–60 | LED |
| RSL700500VF | 818*617 | 702*502 | R60 | 8.3 | 90 | 6.4 | 25–60 | LED |
| RSL450400VF | 569*563 | 452*402 | R15 | 5.8 | 90 | 4.6 | 25–60 | LED |
Product Features
- Non-powered roof vent for simple and reliable ventilation.
- Easy manual opening and closing with a smooth push-pull handle.
- Double-layer acrylic dome with excellent insulation and UV resistance.
- Built-in LED light for convenient night-time use.
- Locking handle with manual operation, three opening positions, and a maximum opening angle of 60°.
- Interior frame with integrated insect screen and blackout blind.
- Up to 150 cm² of permanent ventilation.

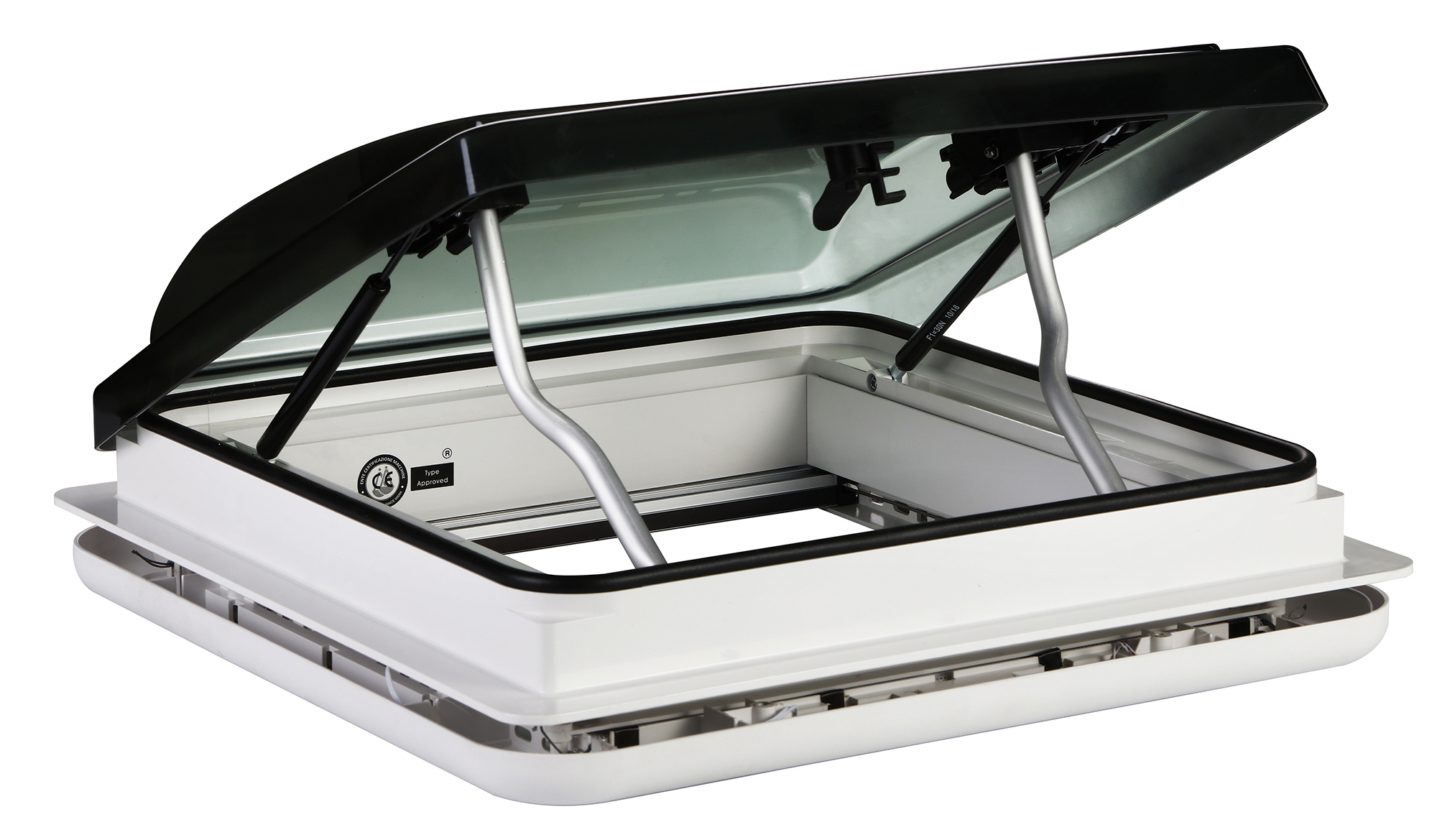

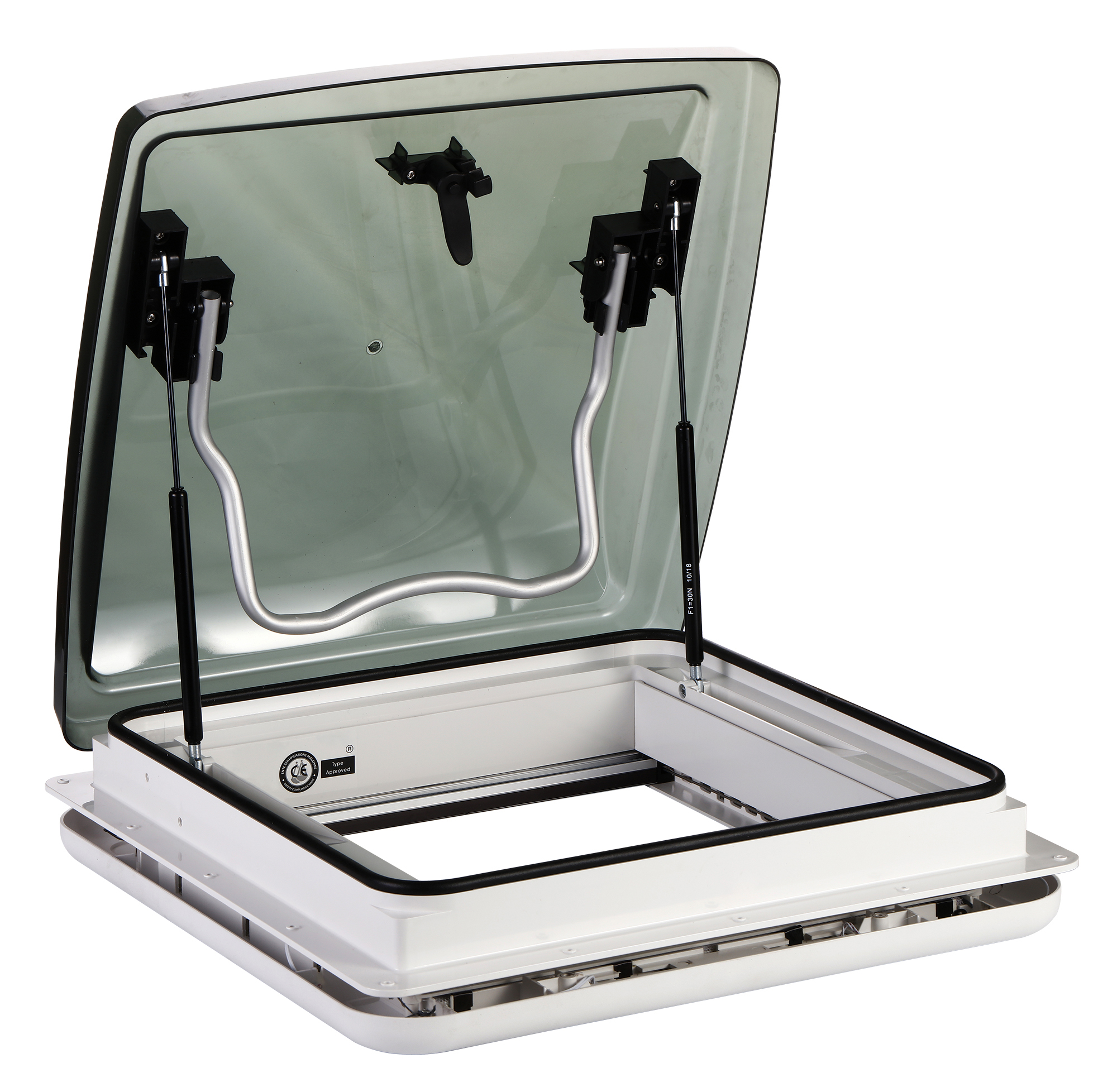

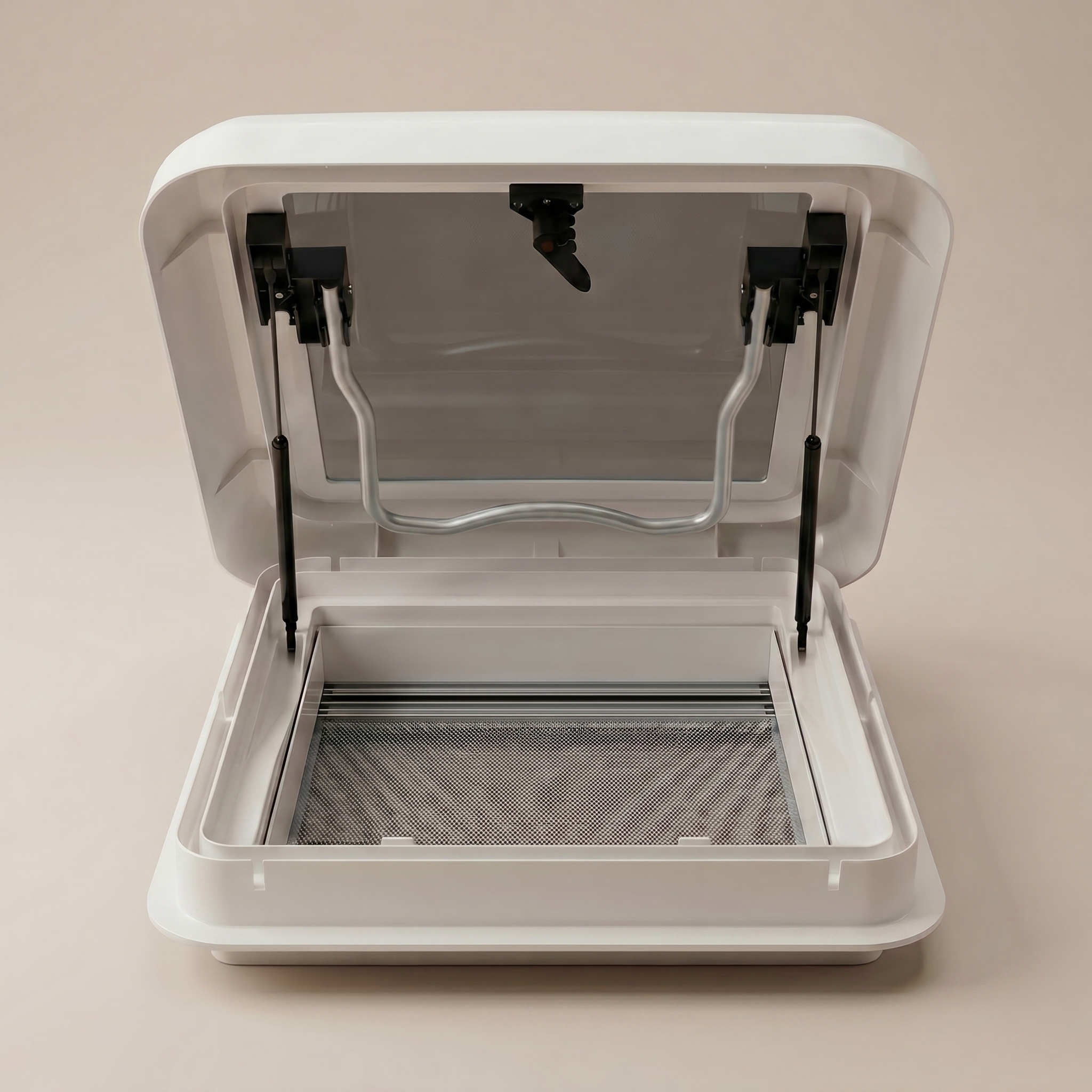

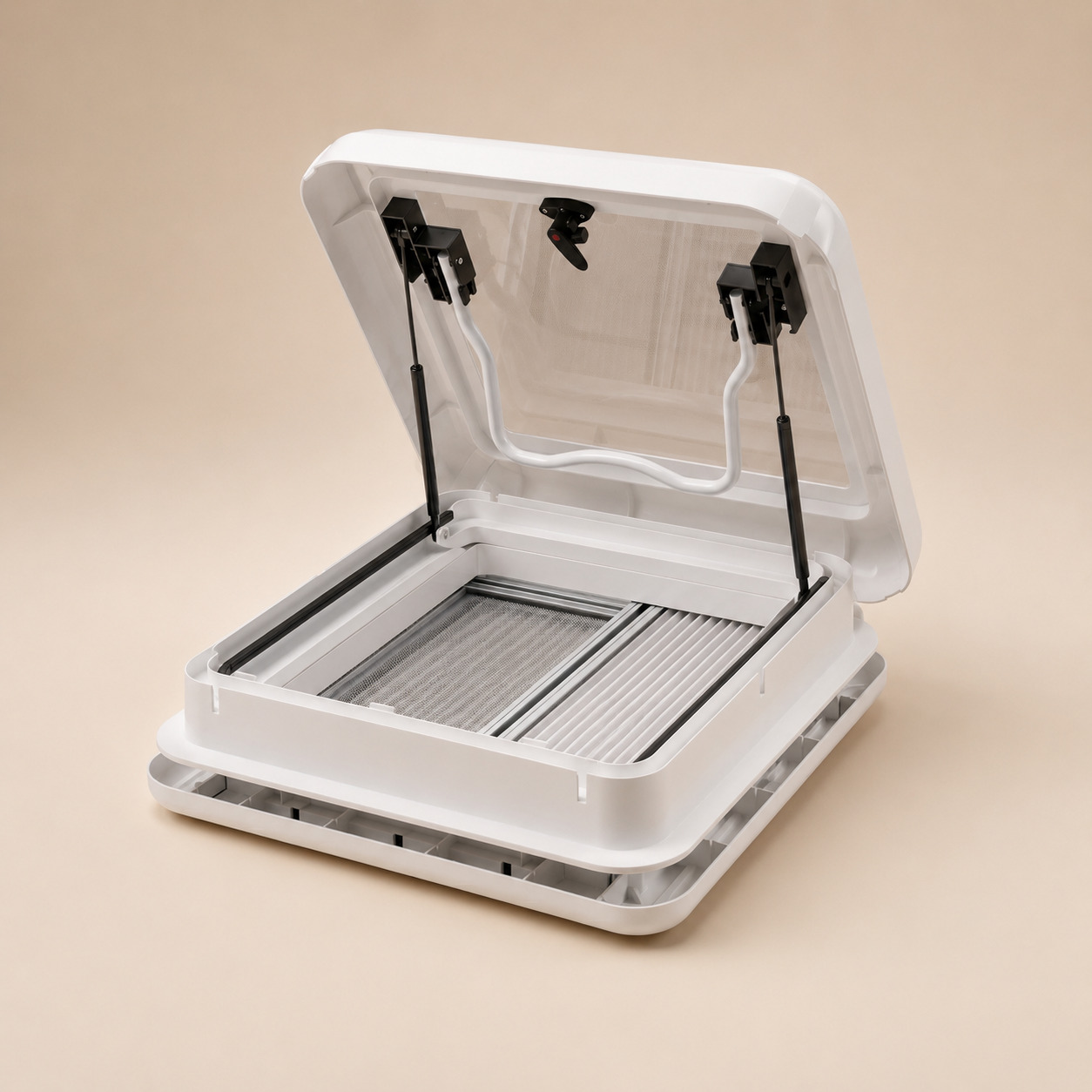

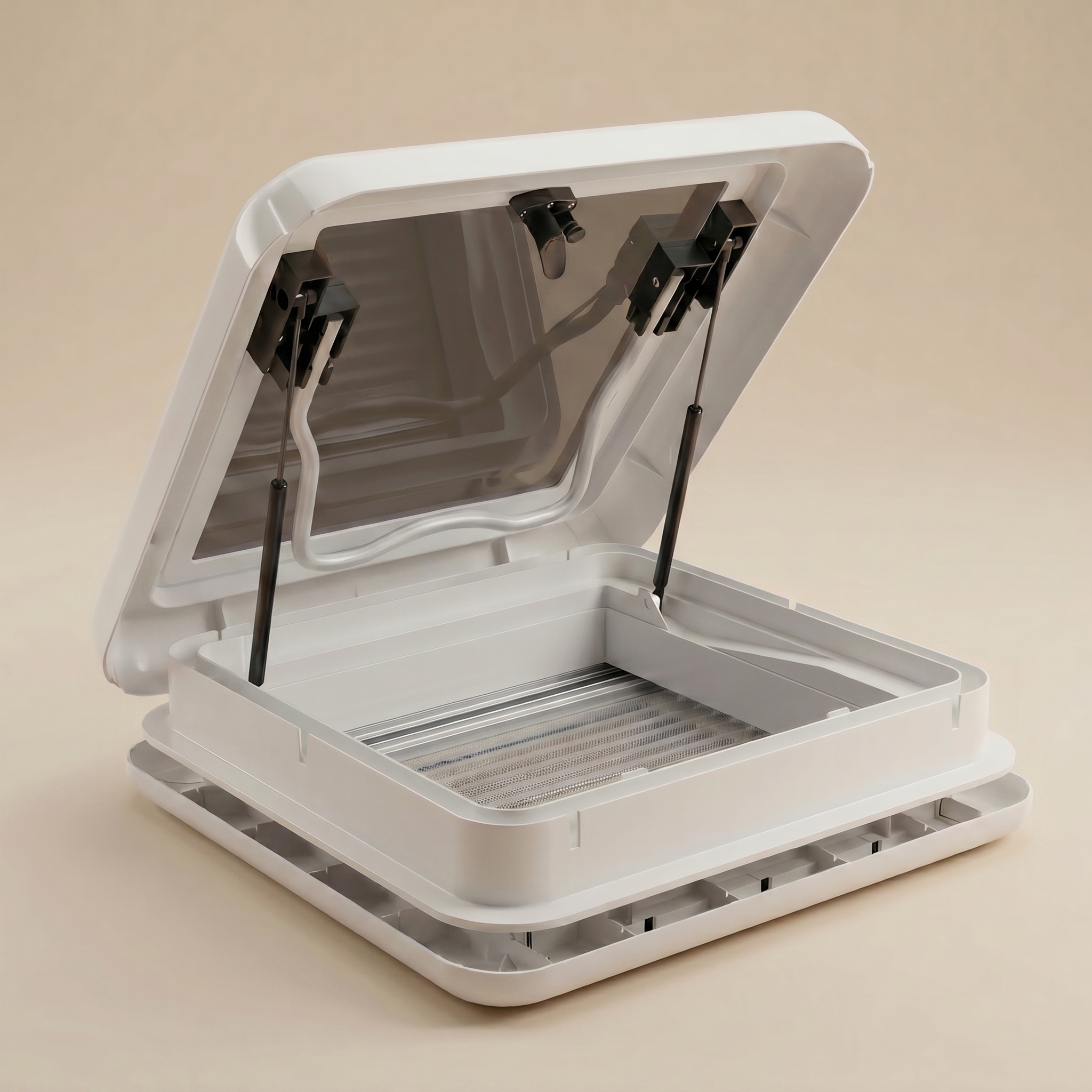

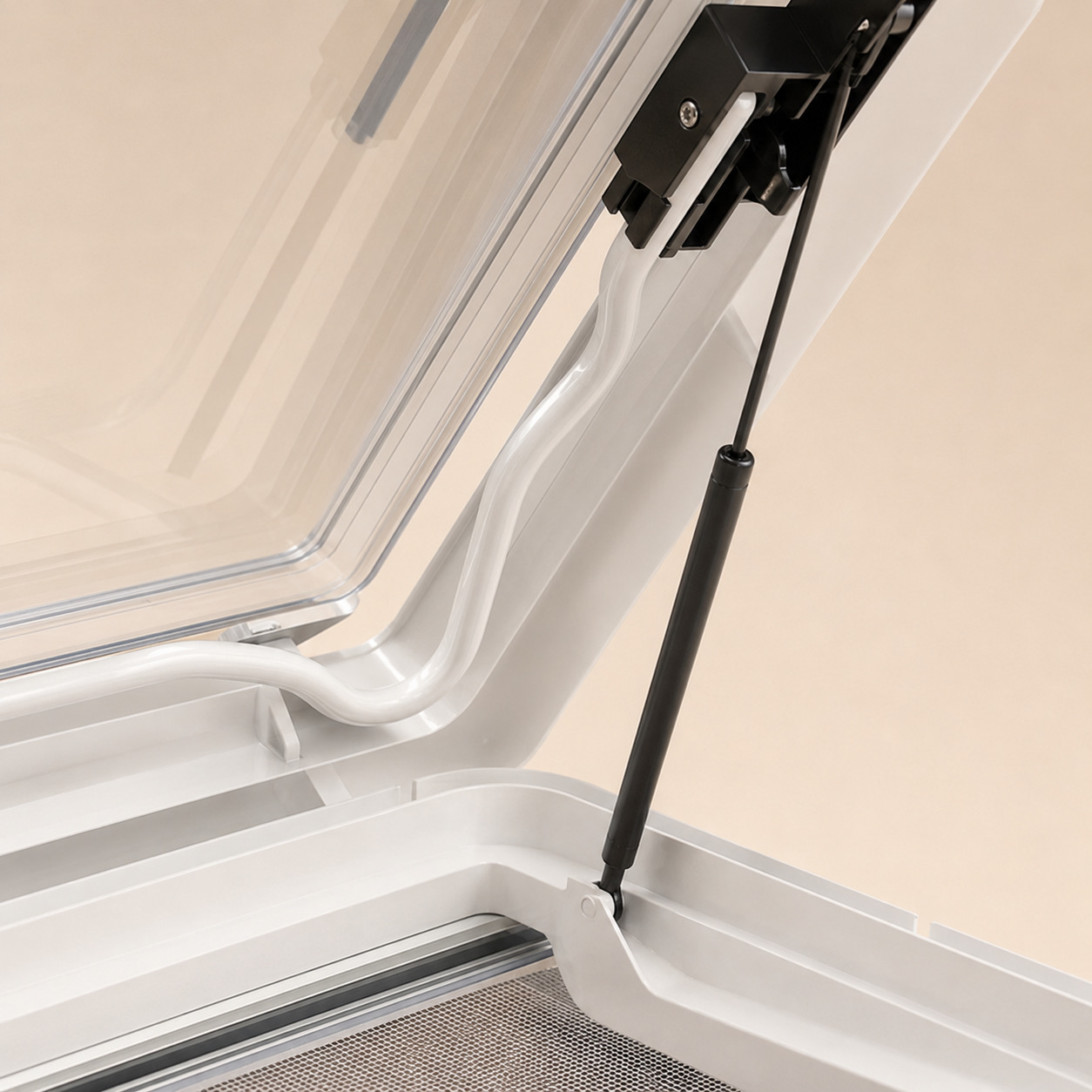

Opens up to a maximum angle of 60°, suitable for motorhomes, caravans and campers. Manual opening and closing with smooth, easy operation assisted by gas springs. Features an integrated blackout blind and insect screen.
